NO.:ERETER003149

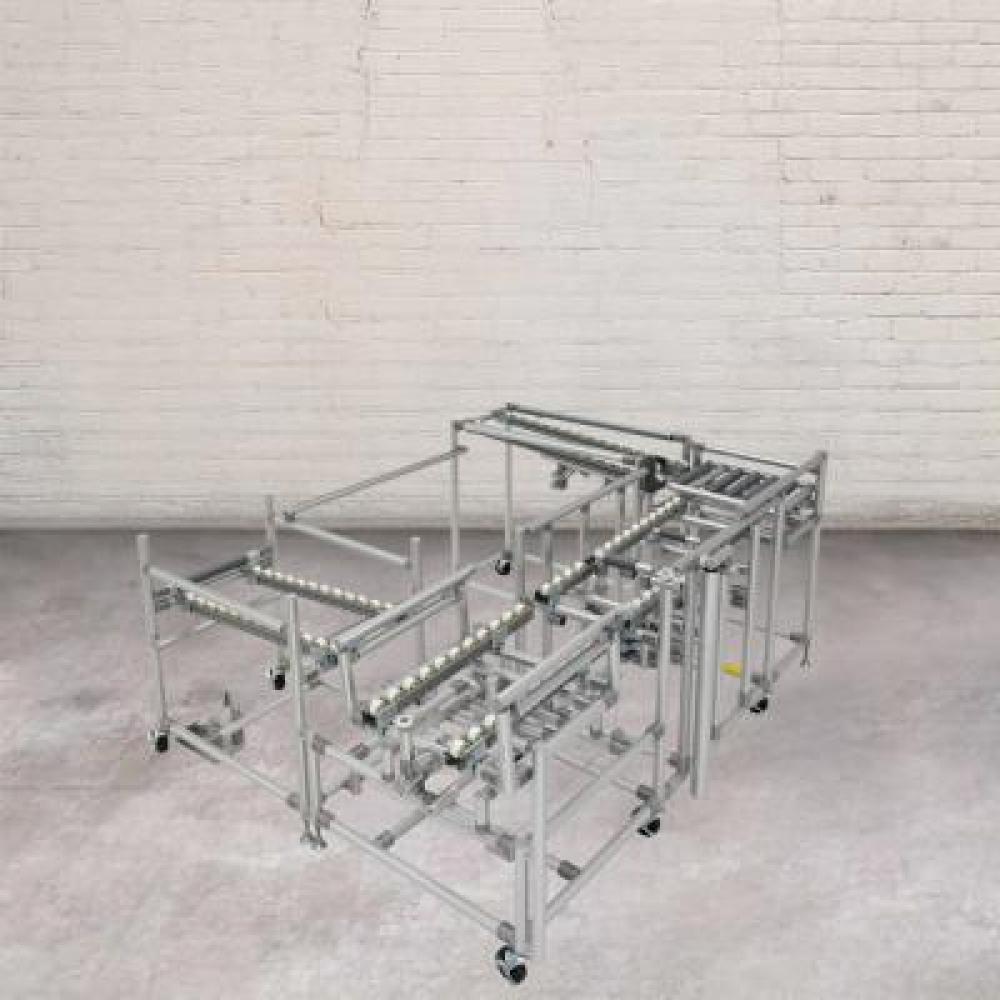

· This mechanism can make the turnover box turn 90 degrees while the front end is facing the direction of travel.
· When the foot pedal is pressed, the intermittent brake mechanism releases a turnover box into the 90 degree steering table.
· Turnover box is designed by using the eccentric of its weight and 90 degree turntable. After turnover box turned 90 degree, the stop rotating mechanism triggers and releases the turnover box into the slide way.
· After the turnover box is discharged, the 90 degree turntable returns to the initial state under the action of counterweight to meet the next turnover box.
Through the special dynamics simulation and according to the actual use condition, make the exclusive scheme.
